SS 316Ti Instrumentation Fittings Manufacturer and Supplier of Stainless Steel 316Ti Compression Tube Fittings, Single and Double Ferrule Tube Fittings in India
Aashish Metal & Alloys are a reliable manufacturer, supplier, and stockist of SS 316Ti Instrumentation Tube Fittings, which are designed to work in high-pressure and leak-free applications in extreme industrial conditions. We make our fittings out of ASTM A182 Stainless Steel 316Ti which is a titanium-stabilized austenitic alloy because it performs very well against intergranular corrosion, high temperature and chloride induced pitting. Stabilization of the alloy using titanium inhibits the formation of carbides and UNS S31635 Compression Tube Fittings, Single Ferrule Fittings and Double Ferrule Tube Fittings are dependable in critical instrumentation and control-line assemblies in a diverse market of industries.
Our DIN 1.4571 Instrumentation Fittings are designed to be installed worldwide and provide a consistent strength, dimensional accuracy, and higher levels of mechanical stability under continuous operations. They are commonly used in chemical processing, petrochemical, power generation, refineries and offshore applications in which secure joints that are vibration-resistant and safety-oriented along with system reliability are critical. We also provide SS 316Ti Ferrule Fittings with condition A or strain hardened condition as per the requirements of the application and the service conditions.
Since we are the largest Stainless Steel 316Ti Tube Fittings manufacturer and supplier in India, we provide high quality standards, machined and compatible with NPT, BSP, BSPP and BSPT thread standards. We have product lines that are unions, elbows, connectors, tees and adapters and have been made of the highest standards of sealing integrity and long service.
- Stainless Steel 316Ti Tube Fittings Specifications
- Stainless Steel 316Ti Compression Fittings Equivalent Grades
- Stainless Steel 316Ti Tube Fittings Quality and Test reports
- Related Types Of Stainless Steel 316Ti Instrumentation Tube Fittings
- SS 316Ti Instrumentation Tube Fittings Pressure Rating
- Chemical Composition
- Mechanical Properties
- Stainless Steel 316Ti Instrumentation Tube Fittings price list
- We supply of variety SS 316Ti Instrumentation Tube Fittings
- Application Of SS 316Ti Compression Tube Fittings

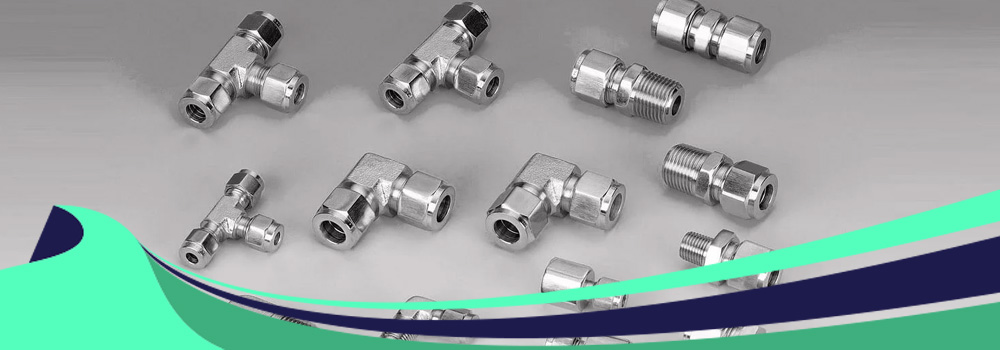

SS 316Ti Tube to Union, 316Ti Bulkhead Union, UNS S31635 Compression and Hydraulic Tube Fittings, DIN 1.4571 Elbows, Stainless Steel 316Ti Male Connectors and Twin Ferrule Fittings
Instrumentation tube fittings are manufactured using ASTM A182 Stainless Steel 316Ti are a secure and reliable fit of vital control systems. These WNR 1.4571 fittings feature a high-precision ferrule mechanism that gives a good grip on the tube and leak-tight sealing at changing pressure conditions. As the nut moves the back ferrule also pushes the front ferrule forward, creating a reliable metal-to-metal seal between the fitting body and the tubing OD. This is to guarantee uniformity in hot and corrosive conditions where SS 316Ti Compression Tube Fittings and 316Ti Twin Ferrule Fittings are usually applied.
We have popular combinations like hooking 316Ti Tube to Union, 316Ti Bulkhead Union, 316Ti Male Connector, DIN 1.4571 Female Elbow and UNS S31635 Male Elbow which are made to strict tolerances to be used in instrumentation and hydraulic applications. These fittings are highly favored in petrochemical plantations, offshore, power generation units and chemical dosing lines because they are of high metallurgical stability and corrosion resistance.
We also provide SS 316Ti Hydraulic Tube Fittings, which are designed to achieve structural integrity in NPT, BSP, BSPP and BSPT thread forms consistent with the world instrumentation standards. These fittings are made out of ASTM A182 316Ti material which offers higher resistance to pitting, stress-corrosion cracking and high operating temperatures.
Our 316Ti Stainless Steel Instrumentation Tube Fittings have excellent creep strength, dimensional precision and mechanical reliability allowing them to perform dependably even at constant cyclic load. These fittings provide sealing integrity in the long term, as well as high service life when utilized in analyzers, impulse lines, gauge connections or process instrumentation assemblies, etc.
Stainless Steel 316Ti Tube Fittings Specifications
| Specifications | ASTM A182, A276, A479 / ASME SA182, SA276, SA479 |
|---|---|
| Size | 1/16 in. to 2 in. & 2mm to 50 mm. |
| Dimensional Range | 1/16 to 2 inches (imperial); 2 to 50 mm (metric) |
| Working Pressures | Upto 2000 to 6000 PSI |
| Thread Type | NPT – ASME B1.20.1, SAE AS71051 | ISO/BSP Parallel – ISO 228 | ISO/BSP Tapered – ISO 7, BS EN 10226-1 | SAE (Unified) – ASME B1.1 |
| End Connections | NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters |
| Types | Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories |
| Equivalent To | SWAGELOK, PARKER, DK-LOK, HOKE |
| Max Working Pressure | 8MPa | 1200psi Depending on The Tubing Material |
| Working Temperature | -40°C—250°C | -40°F—482°F Depending on The Tubing Material |
| Configurations | Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End |
| Uses & Application | |
| Material Test Certificates (MTC) for Tube Fitting as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Stainless Steel 316Ti Compression Fittings Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
Stainless Steel 316Ti Tube Fittings Quality and Test reports
- Third Party Inspection
- Radiography Test
- Hydrostatic Shell Test
- Pneumatic Seat Test
- Pitting Resistance Test
- Hydrostatic Test
We Supplied a Comprehensive Range Of 316Ti Stainless Steel Tube Fittings
Related Types Of Stainless Steel 316Ti Instrumentation Tube Fittings
SS 316Ti Union Elbow
SS 316Ti Bulkhead Elbow
SS 316Ti Bulkhead Union
SS 316Ti Reducing Union
SS 316Ti Male Branch Tee
SS 316Ti Male Run Tee
SS 316Ti Male Elbow
SS 316Ti Bulkhead Male Connector
SS 316Ti Union Tee
SS 316Ti Reducing Union Tee
SS 316Ti Union Cross
SS 316Ti Male Connector
SS 316Ti Female Branch Tee
SS 316Ti Male Adapter
SS 316Ti Female Adapter
SS 316Ti Positionable Male Elbow
SS 316Ti Female Run Tee
SS 316Ti Female Elbow
SS 316Ti Bulkhead Female Connector
SS 316Ti Female Connector
SS 316Ti Front Ferrule
SS 316Ti Back Ferrule
SS 316Ti Tube End Closure
SS 316Ti Ferrule Nut
SS 316Ti Instrumentation Tube Fittings Pressure Rating
| NPT/ISO Pipe Size in. | Tube Fittings | |
|---|---|---|
| Male | Female | |
| psig (bar) | psig (bar) | |
| 1/16 | 11 000 (757) | 6 700 (461) |
| 1/8 | 10 000 (689) | 6 500 (447) |
| 1/4 | 8 000 (551) | 6 600 (454) |
| 3/8 | 7 800 (537) | 5 300 (365) |
| 1/2 | 7 700 (530) | 4 900 (337) |
| 3/4 | 7 300 (502) | 4 600 (316) |
| 1 | 5 300 (365) | 4 400 (303) |
| 1 1/4 | 6 000 (413) | 5 000 (344) |
| 1 1/2 | 5 000 (344) | 4 600 (316) |
| 2 | 3 900 (268) | 3 900 (268) |
| OD | OD Actual | Thread Designation – Nominal Size | Thread per inch | |
|---|---|---|---|---|
| (fraction inch) | (inches) | (inches) | NPT | BSP |
| 5/16 | 0.3125 | 1/16 | 27 | 28 |
| 13/32 | 0.405 | 1/8 | 27 | 28 |
| 35/64 | 0.540 | 1/4 | 18 | 19 |
| 43/64 | 0.675 | 3/8 | 18 | 19 |
| 27/32 | 0.840 | 1/2 | 14 | 14 |
| 1-3/64 | 1.050 | 3/4 | 14 | 14 |
| 1-5/16 | 1.315 | 1 | 11-1/2 | 11 |
| 1-21/32 | 1.660 | 1-1/4 | 11-1/2 | 11 |
| 1-29/32 | 1.900 | 1-1/2 | 11-1/2 | 11 |
| 2-3/8 | 2.375 | 2 | 8 | 11 |
| 2-7/8 | 2.875 | 2-1/2 | 8 | 11 |
| 3-1/2 | 3.5 | 3 | 8 | 11 |
| 4 | 4.0 | 3-1/2 | 8 | 11 |
| 4-1/2 | 4.5 | 4 | 8 | 11 |
| 5-5/8 | 5.563 | 5 | 8 | 11 |
| 6-5/8 | 6.625 | 6 | 8 | 11 |
We Keep Bulk Stock Of 316Ti Stainless Steel Compression Fittings At Our Stockyard, Contact Us For Free Sample & Stock List.
Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| SS 316Ti | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Stainless Steel 316Ti Instrumentation Tube Fittings price list
Request the latest Stainless Steel 316Ti Instrumentation Tube Fittings List. Please click on the request a quote button or click here to request the updated price list and ready stock information along with your requirement. Aashish Metal & Alloys maintains a stock of all standard items and can export them at best price for 316Ti Stainless Steel Tube Fittings.
We supply of variety SS 316Ti Instrumentation Tube Fittings
Aashish Metal & Alloys is a Highly Acclaimed Manufacturer & suppliers of Stainless Steel 316Ti Instrumentation Tube Fittings offering all varieties in all types of 316Ti Stainless Steel in all sizes, with more then 52 countries worldwide.
| Stainless Steel 316Ti Tube Fittings | Stainless Steel 316Ti Parker Tube Fittings |
| Stainless Steel 316Ti Swagelok Tube Fittings | SS 316Ti Instrumentation Fittings |
| 316Ti Stainless Steel Compression Tube Fittings | Stainless Steel 316Ti Ferrule Fittings |
| Stainless Steel 316Ti Hydraulic Fittings | SS 316Ti Single Ferrule Fittings Stockist |
| SS 316Ti Double Ferrule Fittings Supplier | 316Ti Stainless Steel NPT Fittings |
| 316Ti Stainless Steel Tube To Union | 316Ti Stainless Steel Tube To Male Fittings |
| 316Ti Stainless Steel Tube To Female Pipe | Stainless Steel 316Ti Male Connector |
| 316Ti SS Flared Tube Fittings Exporter | 316Ti Stainless Steel Imperial Tube Fittings |
| DIN 1.4571 Male Connector | AISI 316Ti Tube End Closure |
| 316Ti SS 45 Deg Positionable Male Elbow | 316Ti Stainless Steel Female Branch Tee |
| 316Ti Stainless Steel Tube End Closure | Stainless Steel 316Ti Front Ferrule |
| Stainless Steel 316Ti Female Connector | Grade 316Ti SS Reducing Union Manufacturer |
| Stainless Steel 316Ti Bulkhead Union Distributor | Stainless Steel 316Ti Union Elbow |
| SS 316Ti Industrial Tube Fittings Price | 316Ti Stainless Steel Back Ferrule Fittings |
| 316Ti Stainless Steel Male Adapter | DIN 1.4571 Union Cross |
| Stainless Steel 316Ti Fitting End Closure | SS 316Ti Back Ferrule |
| 316Ti Stainless Steel Reducing Union Tee | 316Ti Stainless Steel 90 Deg Male Adapter |
| Stainless Steel 316Ti Female Branch Tee | 316Ti SS Tube Plug Dealer |
| Stainless Steel 316Ti Compression Tube Fittings | UNS S31635 Bulkhead Elbow |
| Stainless Steel 316Ti Allen Key Plug | SS 316Ti Tube Cap Fittings |
Application Of SS 316Ti Compression Tube Fittings
Application Industry
Why Choose Aashish Metals for Stainless Steel 316Ti Tube Fittings
Aashish Metals is also known to be of high technical expertise and dependable supply of Stainless Steel 316Ti Tube Fittings, which is of reliable supply according to engineering teams in sensitive industries. We have in our team metallurgical experts, quality engineers and application specialists: they are familiar with the performance requirements of ASTM A182 and DIN 1.4571 instrumentation fittings in corrosive and high-pressure conditions. This enables us to prescribe the appropriate grade, conditioning and design of your process requirements.
All the UNS S31635 Compression, Ferrule, and Hydraulic Tube Fitting products are produced with certified raw material, accuracy in machining, and global standards of tolerance. Our inspection procedures are stringent and they involve dimensional checks, pressure tests, PMI, hardness tests and ferrule integrity tests to ensure leak-free operation in the tough systems.
Our quality management system is of international standards and this has ensured the same consistency of reliability in all batches. Having a powerful inventory, quick delivery capacity and full documentation (MTC according to EN 10204 3.1, test reports, and compliance certificates), we aid buyers to minimize the downtime and integrity of the systems.
Having several decades of experience within the industry, Aashish Metals is still a reliable manufacturer, supplier and stockist of 316Ti Instrumentation Tube Fittings and provides a solution to durability, precision and long-term operation safety.
Frequently Asked Questions on Nickel Alloy Pipes and Tubes
Selection depends on:
- Temperature of operation
- Type of corrosive media
- Required pressure rating
- The mechanical strength requirements.
- Standards in the industry (ASTM, ASME, DIN, ISO).
An expert on materials will result in the selection of a high-temperature alloy such as Alloy 625, or an alkaline alloy such as Nickel 200/201.
