Aashish Metals is a trusted instrumentation tube fittings manufacturer and supplier providing high-quality solutions for fluid, gas, and hydraulic systems across multiple industries. Our range of instrumentation tube fittings includes precision-engineered compression tube fittings, double ferrule tube fittings, and other instrumentation pipe fittings designed to deliver secure and leak-proof connections in demanding industrial environments.

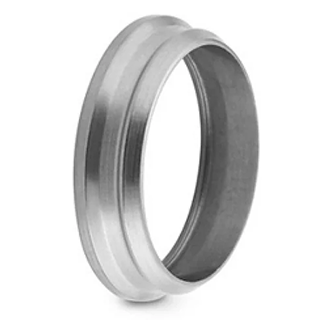

As a reliable supplier of stainless steel instrumentation fittings, we manufacture fittings that offer excellent corrosion resistance, durability, and high-pressure performance. These fittings are widely used in instrumentation lines, pressure measurement systems, and process control applications where accuracy and safety are critical. Our product range also includes double ferrule compression tube fittings and instrument ferrule components that ensure strong mechanical grip and vibration resistance.
Aashish Metals supplies instrumentation fittings and instrumentation pipe connection solutions that meet the requirements of oil and gas plants, petrochemical facilities, power generation units, and chemical processing industries. We also manufacture pressure gauge pipe fittings and instrument fitting components designed for precise control in instrumentation systems.
As an experienced instrumentation fittings manufacturer, we focus on quality, precision machining, and strict inspection standards. Our products are comparable to leading global brands such as Parker instrumentation fittings, Hy-Lok tube fittings, A-Lok tube fittings, Brennan instrumentation fittings, and Cajon tube fittings, while offering competitive pricing and reliable performance for industrial operations.
Table of Content
- Specification of Shims
- Material Grades Available in Metal Shims
- Shims Products List
- What Should Be Considered When Choosing Shims
- Quality and Assurance – Delivering Precision Shims with Unmatched Reliability
- Packaging Excellence – Secure Delivery by Expert Shims Manufacturers
- Aashish Metals – Certified Excellence in Shim Manufacturing
- Applications of Shims
What is Instrumentation Tube Fitting?
Instrumentation tube fittings are specialized compression tube fittings used to connect instrumentation tubes and pipelines in fluid or gas systems. These fittings create secure and leak-tight joints using a double ferrule compression mechanism that grips the tubing firmly. Commonly used in instrumentation pipe fittings, they ensure reliable performance in high-pressure and precision measurement systems, including installations with pressure gauge pipe fittings and other critical instrumentation components.
Our Instrumentation Tube Fitting Products

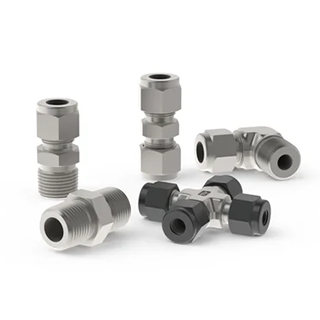

Stainless Steel Instrumentation Tube Fitting
Tube Fittings
Manifold Valves
Ball Valves
Needle Valve
Pipe & Tubes
Pipe Fittings
Threaded Fittings
Socket weld Fittings
Specifications of Instrumentation tube fittings
| Parameter | Details |
|---|---|
| Product | Instrumentation Tube Fittings |
| Standard Sizes | Sizes in mm: 3 mm to 50 mm Sizes in inch: 1/8″ to 2″ Custom sizes available |
| End Connection | Compression Tube Fittings End |
| Connection Types | Welding, Threaded, JIC |
| Thread Type | BSPP, BSPT, NPT |
| Testing | Hydrostatic Testing Repeat Assembly Test Burst and Impulse Test |
| Pressure Rating | 1000 PSI 3000 PSI 6000 PSI 10000 PSI |
| Origin | Japanese Indian, Korean European, American |

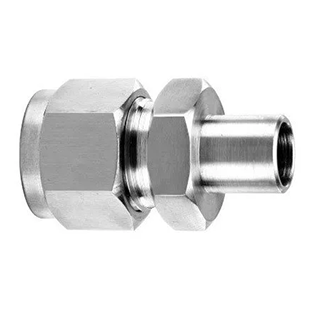

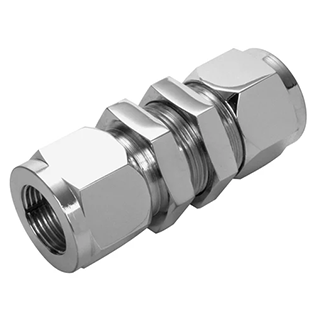

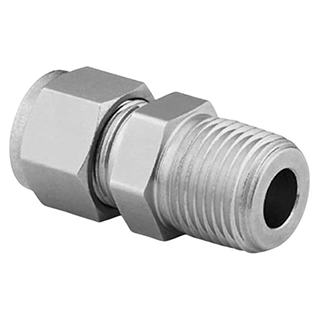

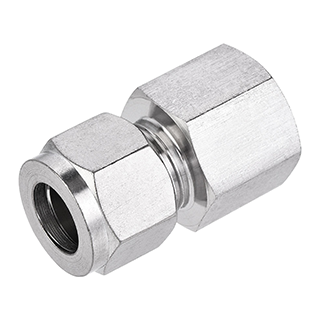

| Standard Configurations | Tube Closure Female Connector Tube to Male Ferrule Set Weld Connector Tube to Tube |

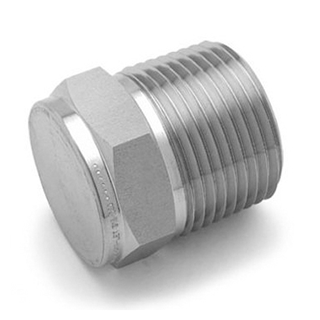

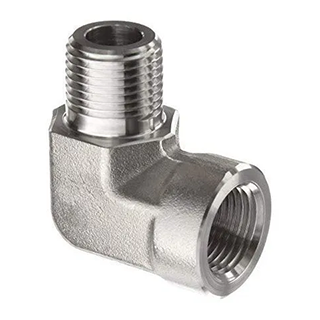

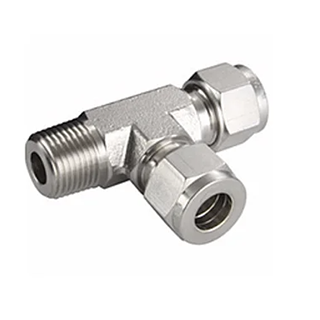

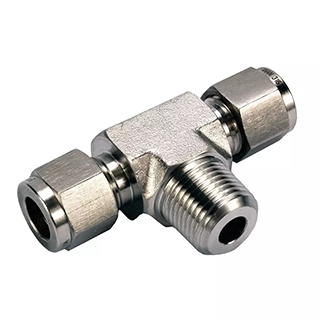

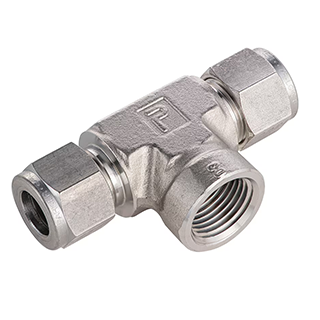

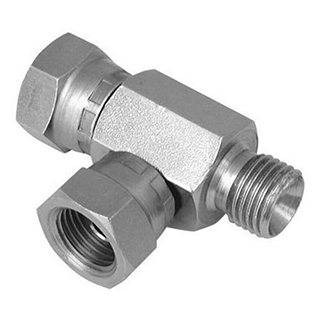

| Types | Cross Elbow Tee Cap Plug |
| Documentation | MTC (Mill Test Certificate) 100% Radiography Test Report Third Party Inspection NABL Approved Lab Reports |
| Equivalent To | HOKE PARKER SWAGELOK DK-LOK |
| Applications | Process Control Systems Hydraulic Systems Water Treatment Plants Food Processing Equipment |
| Packaging | Bubble Wrap Plastic Bags Anti-tarnish Paper Plastic Wrap |
Instrumentation Tube Fittings Types
Looking for a specific grade or configuration? Aashish Metal & Alloys stocks 2,000+ instrumentation tube fittings in 25+ materials with same-day dispatch for standard sizes. Call +91-22-66362223 or request a quote online for a price list with ready-stock confirmation.
Pressure Rating Instrument Pipe Fittings
Fractional Tube
| Tube OD (in) | WT 0.065 | WT 0.035 | WT 0.028 | WT 0.049 | WT 0.095 | WT 0.083 | WT 0.120 | WT 0.109 | WT 0.156 | WT 0.134 | WT 0.188 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/8 | — | 10900 | 8500 | — | — | — | — | — | — | — | — |
| 3/16 | — | 7000 | 5400 | 10200 | — | — | — | — | — | — | — |
| 1/4 | 10200 | 5100 | 4000 | 7500 | — | — | — | — | — | — | — |
| 5/16 | 8000 | 4000 | — | 5800 | — | — | — | — | — | — | — |
| 3/8 | 6500 | 3300 | — | 4800 | — | 8600 | — | — | — | — | — |
| 1/2 | 5100 | 2600 | — | 3700 | — | 6700 | — | — | — | — | — |
| 5/8 | 4000 | — | — | 2900 | 6000 | 5200 | — | — | — | — | — |
| 3/4 | 3300 | — | — | 2400 | 4900 | 4200 | 6400 | 5800 | — | — | — |
| 1 | 2400 | — | — | — | 3600 | 3100 | 4700 | 4200 | 6200 | 5300 | — |
| 1 1/4 | — | — | — | — | 2800 | 2400 | 3600 | 3300 | 4900 | 4100 | — |
| 1 1/2 | — | — | — | — | 2300 | — | 3000 | 2700 | 4000 | 3400 | 4900 |
| 2 | — | — | — | — | — | — | 2200 | 2000 | 2900 | 2500 | 3600 |
Metric Tube
| Tube OD (in) | WT 0.065 | WT 0.035 | WT 0.028 | WT 0.049 | WT 0.095 | WT 0.083 | WT 0.120 | WT 0.109 | WT 0.156 | WT 0.134 | WT 0.188 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 420 | 670 | — | — | — | — | — | — | — | ||
| 8 | 310 | 490 | — | — | — | — | — | — | — | ||
| 10 | 240 | 380 | — | — | — | — | — | — | — | ||
| 12 | 200 | 310 | 430 | — | — | — | — | — | — | ||
| 14 | 180 | 280 | 390 | — | — | — | — | — | — | ||
| 15 | 170 | 260 | 360 | — | — | — | — | — | — | ||
| 16 | — | 240 | 330 | — | — | — | — | — | — | ||
| 18 | — | 210 | 290 | — | — | 370 | — | — | — | ||
| 20 | — | 190 | 260 | — | 330 | — | — | — | — | ||
| 22 | — | 170 | 230 | — | 300 | — | — | — | — | ||
| 25 | — | — | 200 | — | 320 | 260 | — | — | — | ||
| 28 | — | — | 180 | 230 | 280 | 330 | — | — | — | ||
| 30 | — | — | 170 | 210 | 260 | 310 | — | — | — | ||
| 32 | — | — | 160 | 200 | 240 | 290 | 330 | — | — | ||
| 38 | — | — | — | 170 | 200 | 240 | 280 | — | 310 | ||
| 42 | — | — | — | — | 180 | 210 | 250 | — | 280 | ||
| 50 | — | — | — | 180 | 150 | — | 200 | 230 | 260 |
Flare Fittings Construction Material
| Material Grade | Elbows, Crosses & Tees Specification | Marking / Designator | Tube Adapters & Straight Fittings Specification |
|---|---|---|---|
| Brass | ASTM B 453 ASTM B 283 | B | ASTM B 16 |
| 316 / 316L Stainless Steel | ASTM A 182 ASME SA 182 | S6 / S6L | ASTM A 276 ASME SA 479 |
| Aluminum | ASTM B 247 | AL | ASTM B 211 |
| Carbon Steel | — | C | ASTM A 108 |
| Inconel 600 | ASTM B 564 ASME SB 564 | A6 | ASTM B 166 ASME SB 166 |
| Monel 400 / R-405 | ASTM B 564 ASME SB 564 | M | ASTM B 164 ASTM SB 164 |
| Hastelloy C276 | ASTM B 564 | H | ASTM B 574 |
| Alloy 20 | ASTM B 462 | A20 | ASTM B 473 |
| PTFE | — | T | ASTM D 1710 |
| Titanium | ASTM B 381 | TI | ASTM B 348 |
| Nylon | — | N | ASTM D 4066 |
Material Selection Guide For Tube Fittings
| Tube Material | Recommended Temperature Range | General Application |
|---|---|---|
| Hastelloy C-276 | -195°C to 520°C | Localized corrosion attack environments |
| Aluminum | -40°C to 200°C | Low-temperature applications |
| Carbon Steel | -29°C to 425°C | High-pressure applications |
| SS 316 / SS 304 | -250°C to 600°C | High-temperature and corrosive media |
| Copper | -40°C to 200°C | Low-temperature applications |
| Inconel 600 | -145°C to 620°C | Corrosive media with high-temperature applications |
| Monel 400 | -195°C to 420°C | Marine and chemical applications |
| Titanium | -59°C to 316°C | Salt solutions, seawater, and acidic media |
Applications of Instrumentation Tube Fittings
Instrumentation tube fittings are widely used in industries requiring precise and reliable fluid control systems.
- Oil and gas processing plants
- Petrochemical and chemical industries
- Hydraulic and pneumatic instrumentation systems
- Power generation plants
- Pharmaceutical manufacturing facilities
- Gas distribution and control systems
- Pressure measurement systems using pressure gauge pipe fittings
- Process instrumentation pipelines
- Industrial automation and fluid control systems
FAQs About Instrumentation Tube Fittings
Aashish Metal & Alloys supplies instrumentation tube fittings in SS 304, SS 316L, Duplex 2205, Super Duplex 2507, Inconel 625, Hastelloy C276, Monel 400, Titanium, Copper Nickel, Alloy 20, and Brass — covering the full range required for oil & gas, chemical, and pharmaceutical applications.
Our fittings are available in 1,000 PSI, 3,000 PSI, 6,000 PSI, and 10,000 PSI pressure classes. Actual ratings depend on tube OD, wall thickness, and material grade — contact us with your system specs for confirmation.
Yes. Our double ferrule and single ferrule tube fittings are dimensionally equivalent to Swagelok, Parker Hannifin, Hoke, and DK-LOK systems and are offered as direct drop-in replacements.
We are PED/IBR approved and supply material test certificates (MTC EN 10204 3.1 and 3.2), hydrostatic test reports, NABL-approved lab test results, and third-party inspection reports on request.
Sizes range from 1/8″ to 2″ (fractional) and 3mm to 50mm (metric). Custom sizes are available on request. Threads: NPT, BSPP, BSPT.
