Aashish Metals is a trusted supplier and stockist of Inconel sheets and plates in India, maintaining comprehensive inventory of Inconel 600, 601, 625, and 718 grades as well as Incoloy 800, 800H/HT, and 825 from our Mumbai facility. Our Inconel flat products conform to ASTM B168 / ASME SB168, AMS 4544, QQ-N-281, DIN 17750, and BS 3072/3076 standards, and are available in thicknesses from 0.1 mm (foil/shim) to 200 mm (heavy plate), widths from 1,000 mm to 2,500 mm, and lengths up to 12,500 mm. Inconel alloys are nickel-chromium superalloys valued for their exceptional high-temperature strength, outstanding resistance to oxidation and corrosion, and reliable mechanical performance in environments where conventional stainless steels quickly fail. From hot-rolled and cold-rolled sheets for heat exchanger fabrication to precision shim sheets for aerospace assemblies and perforated plates for filtration systems, Aashish Metals covers every flat-product requirement. Our Inconel 625 sheets and plates, Inconel 600 sheets and plates, and Inconel 601 sheets and plates are available ex-stock. Contact us for a competitive quote.
What Are Inconel Sheets & Plates?
Inconel is a registered family of austenitic nickel-chromium-based superalloys developed for service in extreme environments high temperature, high pressure, and highly corrosive. Inconel sheets and plates are flat-rolled products used as the base material for fabricated components in heat exchangers, pressure vessels, furnace linings, combustion chambers, and chemical processing equipment.
Inconel Sheets & Plates Grade
For complementary Inconel products, explore our Inconel 600 pipes and tubes, Inconel 625 pipes and tubes, Inconel 600 round bars, Inconel 625 round bars, and Inconel 718 round bars. See also our full Inconel products range.

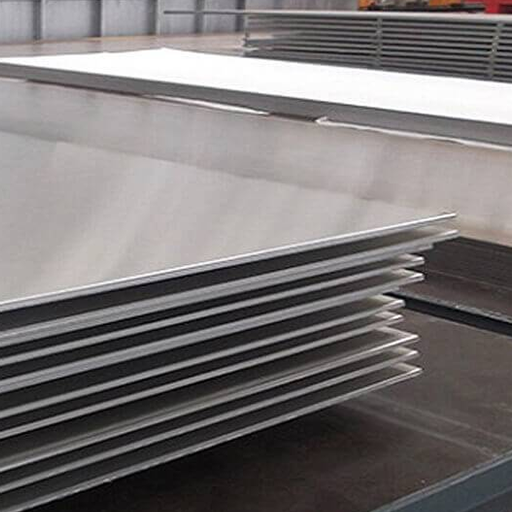

Inconel 600 Sheets & Plates
Inconel 600 (UNS N06600 / Werkstoff Nr. 2.4816) offers excellent resistance to oxidation and carburisation at temperatures up to 1,177 °C, combined with good alkaline corrosion resistance. It is widely used in heat treatment equipment, chemical processing, and nuclear reactors. Our Inconel 600 sheets and plates are stocked in a wide range of sizes.

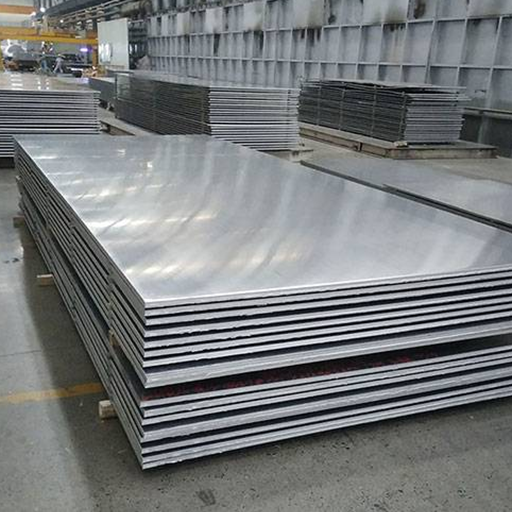

Inconel 601 Sheets & Plates
Inconel 601 (UNS N06601 / Werkstoff Nr. 2.4851) adds aluminium to the nickel-chromium base, producing a particularly tough alumina surface oxide that resists oxidation and scaling up to 1,250 °C. It is the preferred grade for industrial furnace components, radiant tubes, and thermal processing equipment. See our Inconel 601 sheets and plates.

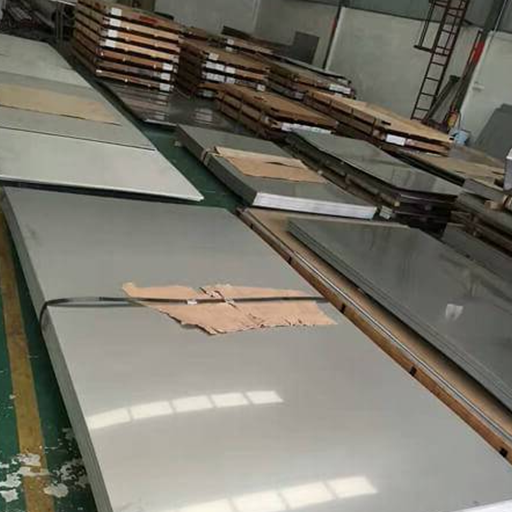

Inconel 625 Sheets & Plates
Inconel 625 (UNS N06625 / Werkstoff Nr. 2.4856) is the most versatile grade — a nickel-chromium-molybdenum-niobium alloy with exceptional fatigue strength, sea-water corrosion resistance, and weldability. It is specified for marine, aerospace, chemical processing, and oil & gas applications. Our Inconel 625 sheets and plates are our most popular Inconel flat product.
Inconel 718 Sheets & Plates
Inconel 718 (UNS N07718 / Werkstoff Nr. 2.4668) is a precipitation-hardenable nickel-chromium alloy with outstanding high-temperature strength and creep resistance up to 704 °C. It is the most widely used superalloy for aerospace gas turbine components, nuclear fuel element spacers, and high-strength fastener blanks.
Incoloy 800, 800H/HT & 825 Sheets & Plates
We also supply Incoloy 800 (UNS N08800), Incoloy 800H/HT (UNS N08810), and Incoloy 825 (UNS N08825) sheets and plates under ASTM/ASME SB 424 and SB 443. These iron-nickel-chromium alloys combine good high-temperature strength with excellent carburisation and oxidation resistance, used in ethylene cracking furnaces, heat exchangers, and pressure vessels.
Technical data
Inconel Sheets & Plates Specification
| Parameter | Details |
|---|---|
| Standard | ASTM B168 / ASME SB168 (Inconel 600, 601, 625, 718) |
| Additional standards | ASTM / ASME SB 424 (Incoloy 800), SB 443 (Inconel 625 plate), AMS 4544, QQ-N-281 |
| Dimensional standards | ASTM, ASME, API, DIN 17750, BS 3072NA1, BS 3076NA13, ISO 6208 |
| Thickness (sheet) | 0.1 mm to 6 mm |
| Thickness (plate) | 0.5 mm to 200 mm |
| Thickness (coil/strip) | 0.1 mm to 3 mm |
| Width | 1,000 mm / 1,220 mm / 1,500 mm / 2,000 mm / 2,500 mm |
| Length | 2,000 mm / 2,440 mm / 3,000 mm / 4,000 mm / 6,000 mm / 12,500 mm |
| Size (NB) | 15 NB to 150 NB IN |
| Range (thick × width × length) | 0.5 mm to 200 mm thick × 1,000–2,500 mm wide × 2,500–12,500 mm long |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange), Profile, Tray, Channel, Angle |
| Finish | Hot Rolled (HR), Cold Rolled (CR), 2B, 2D, Bright Annealed (BA), No.4, No.8 Mirror, Galvanized |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard |
| Length type | Single Random, Double Random, Cut Length |
| End preparation | Plain End, Bevelled End, Threaded |
| Grades | Inconel 600, 601, 625, 718 / Incoloy 800, 800H, 800HT, 825 |
| UNS numbers | N06600, N06601, N06625, N07718, N08800, N08810, N08825 |
| Test certificates | EN 10204 Type 3.1 / 3.2, Third-Party Inspection, NABL Accredited Lab Reports |
Inconel Sheets & Plates Chemical Composition
| Element | Inconel 600 | Inconel 601 | Inconel 625 | Inconel 718 |
|---|---|---|---|---|
| Ni (Nickel) | 72.0 min | 58.0–63.0 | 58.0 min | 50.0–55.0 |
| Cr (Chromium) | 14.0–17.0 | 21.0–25.0 | 20.0–23.0 | 17.0–21.0 |
| Fe (Iron) | 6.0–10.0 | Balance | 5.0 max | Balance |
| Mo (Molybdenum) | — | — | 8.0–10.0 | 2.8–3.3 |
| Nb + Ta (Niobium) | — | — | 3.15–4.15 | 4.75–5.50 |
| Al (Aluminium) | — | 1.0–1.7 | 0.4 max | 0.20–0.80 |
| Ti (Titanium) | — | — | 0.4 max | 0.65–1.15 |
| Mn (Manganese) | 1.0 max | 1.0 max | 0.50 max | 0.35 max |
| Si (Silicon) | 0.5 max | 0.5 max | 0.50 max | 0.35 max |
| C (Carbon) | 0.15 max | 0.10 max | 0.10 max | 0.08 max |
| S (Sulphur) | 0.015 max | 0.015 max | 0.015 max | 0.015 max |
| Co (Cobalt) | — | — | 1.0 max | 1.0 max |
| Cu (Copper) | 0.5 max | — | — | 0.30 max |
Inconel Sheets & Plates Equivalent Grades
| Grade | Werkstoff Nr. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМЦ 28-2.5-1.5 | NC15FE11M | NiCr15Fe |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | XH75M5TIO | NC22DNB4M | NiCr22Mo9Nb |
| Inconel 718 | 2.4668 | N07718 | — | — | — | — | — |
Inconel Sheets & Plates Mechanical Properties
| Grade | Density | Tensile strength | Yield strength (0.2%) | Elongation | Max service temp. |
|---|---|---|---|---|---|
| Inconel 600 | 8.47 g/cm³ | 550–690 MPa | 240–345 MPa | 30–45% | 1,177 °C |
| Inconel 601 | 8.11 g/cm³ | 550–620 MPa | 205–310 MPa | 30–40% | 1,250 °C |
| Inconel 625 | 8.44 g/cm³ | 827–1,103 MPa | 414–758 MPa | 30–48% | 982 °C |
| Inconel 718 | 8.19 g/cm³ | 1,240–1,450 MPa | 1,034–1,275 MPa | 12–20% | 704 °C |
Standards & Certifications
| Standard body | Specification | Application |
|---|---|---|
| ASTM | B168 | Inconel 600, 601, 625, 718 sheets & plates |
| ASME | SB168 | Pressure vessel / boiler applications |
| ASTM | B443 | Inconel 625 plate |
| ASME | SB443 | Inconel 625 pressure vessel plate |
| ASTM | B424 | Incoloy 825 plate |
| ASME | SB424 | Incoloy 825 pressure vessel plate |
| AMS | 4544 | Inconel 600 sheet |
| QQ-N-281 | — | Nickel alloy sheet (US Government) |
| DIN | 17750 | Inconel sheet & plate (German standard) |
| BS | 3072NA1, 3076NA13 | British standard Inconel sheet |
| ISO | 6208, 9001:2015 | Plate/sheet/strip / QMS |
| EN / Werkstoff Nr. | 2.4816, 2.4851, 2.4856, 2.4668 | European equivalent grades |
| NACE | MR0175 / ISO 15156 | Sour gas service (on request) |
Test Certificates Available
- EN 10204 Type 3.1 (standard with every order)
- EN 10204 Type 3.2 (third-party witnessed — on request)
- NABL Accredited Lab Test Report
- PMI Test, Third-Party Inspection Report
Inconel Sheet & Plate Forms
- Inconel Hot Rolled Sheets (HR)
- Inconel Cold Rolled Sheets (CR)
- Inconel Hot Rolled Plates
- Inconel Cold Rolled Plates
- Inconel Shim Sheets / Shim Plates
- Inconel Perforated Sheets
- Inconel Chequered Plates
- Inconel Galvanized Sheets & Plates
- Inconel Blank (Circle) & Ring (Flange)
- Inconel Strips & Foils
- Inconel Profiles, Flat, Channel, Tray
- Inconel Coils & Rolls
Where Inconel Sheets & Plates Are Specified
Aerospace & Defence Inconel 625 and 718 sheets are essential for aircraft skin panels, engine exhaust systems, nacelles, thrust reversers, and combustion liners — wherever high strength at elevated temperature plus fatigue and corrosion resistance are simultaneously required. Inconel 718 plate in precipitation-hardened condition is the go-to for airframe fastener blanks and turbine disk forgings.
Chemical Processing Inconel 600 and 625 plates line reactor vessels, heat exchanger shells, and column internals handling strong acids, caustic solutions, and chlorinated process streams. Their resistance to stress-corrosion cracking in chloride environments gives them a decisive advantage over stainless steel.
Oil & Gas / Petrochemical Offshore platform risers, subsea manifold liners, and sour-gas (H₂S) service pressure vessel cladding use Inconel 625 plates. Complement plate orders with our Inconel 625 pipe fittings and Inconel 625 tube fittings.
Heat Treatment & Industrial Furnaces Inconel 600 and 601 are the standard materials for radiant tubes, muffle furnaces, retort furnaces, and annealing box covers — applications demanding continuous operation above 1,000 °C with minimal distortion and scaling.
Power Generation Inconel alloy sheets are used in gas turbine combustion chambers, superheater tubes, heat exchanger plates in combined-cycle plants, and nuclear reactor fuel element spacers.
Marine & Seawater Service Inconel 625 has exceptional resistance to seawater pitting and crevice corrosion, making it the material of choice for marine riser systems, propeller blades, offshore mooring components, and desalination plant equipment.
Pharmaceutical & Food Processing Inconel 600 and 625 are used in autoclaves, sterilisation vessels, and reaction vessels where product purity, corrosion resistance, and cleanability are all critical requirements.
Inconel Sheets and Plates Price
The price of Inconel sheets and plates depends on factors such as alloy grade, thickness, dimensions, surface finish, material origin, quantity, certification and current nickel market conditions. Grades such as Inconel 600, 601, 625, 718 and X-750 may have different pricing based on their chemical composition and manufacturing requirements. For accurate and current Inconel sheets and plates prices, customers can contact us with their required grade, size, thickness and quantity to receive a customized quotation.
How Aashish Metals Sources and Controls Inconel Flat Products
Every Inconel sheet and plate we supply originates from approved mills — either domestic manufacturers or internationally certified European and Japanese origin — and is subject to incoming inspection before being released to stock or customer orders.
Incoming Material Inspection Every consignment is checked against the manufacturer’s Mill Test Certificate for heat number, chemical composition, mechanical properties, and dimensional conformance before acceptance.
Third-Party Testing Available On request, we facilitate third-party inspection by Bureau Veritas, SGS, Lloyd’s Register, and TÜV. The following tests can be arranged:
- Chemical analysis (OES / XRF / Wet Chemistry)
- Tensile, yield, and elongation testing
- Hardness testing (Rockwell, Brinell, Vickers)
- Intergranular corrosion test (ASTM A262 Practice C — applicable to Inconel 600)
- Ultrasonic testing (UT) for heavy plates
- Dye penetrant testing (DPT)
- PMI (Positive Material Identification)
Value-Added Processing
- Plasma cutting, water-jet cutting, shearing to custom dimensions
- Perforating, forming, polishing, pickling
- Circle and ring (flange blank) cutting
- Shim sheet cutting to exact thickness
For full-system supply, pair Inconel sheet orders with Inconel 601 pipe fittings, Inconel 601 round bars, Inconel 625 fasteners, and Inconel 600 manifold valves.
Frequently Asked Questions
Inconel 600, 601, 625, and 718 sheets and plates primarily conform to ASTM B168 / ASME SB168. Inconel 625 plate additionally conforms to ASTM B443 / ASME SB443. Additional standards include AMS 4544 (Inconel 600 sheet), QQ-N-281, DIN 17750, BS 3072NA1, and ISO 6208.
We supply Inconel sheets in hot-rolled (HR), cold-rolled (CR), 2B, bright annealed (BA), No.4, No.8 mirror polish, and galvanized finishes. Shim sheets with close thickness tolerance are available in annealed condition.
Yes. Aashish Metals supplies Inconel 625 plates up to 200 mm thick under ASTM B443 / ASME SB443, suitable for pressure vessel, heat exchanger tube-sheet, and subsea component fabrication.
Yes. We offer plasma cutting, water-jet cutting, and shearing to exact dimensions. Circles (blanks), rings (flange blanks), and shim sheets in custom thicknesses are also available on request.
Yes. Every Inconel sheet and plate from Aashish Metals is supplied with an EN 10204 Type 3.1 Mill Test Certificate as standard. Type 3.2 (third-party witnessed) reports and NABL-accredited lab reports are available on request.
Absolutely. Inconel 625 (UNS N06625) has exceptional resistance to seawater pitting, crevice corrosion, and erosion-corrosion, making it the standard choice for marine riser liners, offshore platform components, and desalination plant plates. It also meets NACE MR0175 / ISO 15156 sour-service requirements.
Get a Fast Quote for Inconel Sheets, Plates & Coils
Looking for a single precision-cut sheet for a one-off repair, or a full supply package for a major fabrication contract? Aashish Metals has the stock, the certifications, and the processing capabilities to fulfil any Inconel flat-product requirement.
