Hastelloy Plates & Sheets Supplier in India
Home > Materials > Hastelloy Products > Hastelloy Plates & Sheets
Aashish Metals is one of India’s most dependable Hastelloy plates, sheets & coils suppliers, offering a comprehensive stock of Hastelloy C276, C22, B2, B3, and X grades from our Mumbai facility. Our Hastelloy sheets and plates are engineered to handle extreme corrosion environments including oxidising acids, reducing media, and high-temperature industrial processes making them a first choice across the chemical processing, oil & gas, pharmaceutical, and aerospace sectors. Every piece we supply conforms to internationally recognised standards such as ASTM B575, ASTM B333, ASTM B435, and their ASME equivalents (SB575, SB333, SB435), backed by full material traceability and Mill Test Certificates. Whether you need standard mill-size coils for large fabrication runs, precision-cut plates for heat exchanger components, or custom-dimension sheets for reactor vessels, Aashish Metals fulfils requirements of any scale with competitive pricing, short lead times, and the technical expertise your project demands. Get in touch today to receive a prompt quotation.
What Are Hastelloy Plates & Sheets?
Hastelloy is a family of high-performance nickel-based superalloys formulated specifically to resist corrosion in the harshest chemical and thermal environments. Unlike standard stainless steel, Hastelloy alloys incorporate significant additions of molybdenum, chromium, and in certain grades tungsten and cobalt, which give them outstanding resistance to pitting, crevice corrosion, and stress-corrosion cracking.
Aashish Metals stocks all primary Hastelloy flat product forms:
Hastelloy Plates & Sheets Material Grades

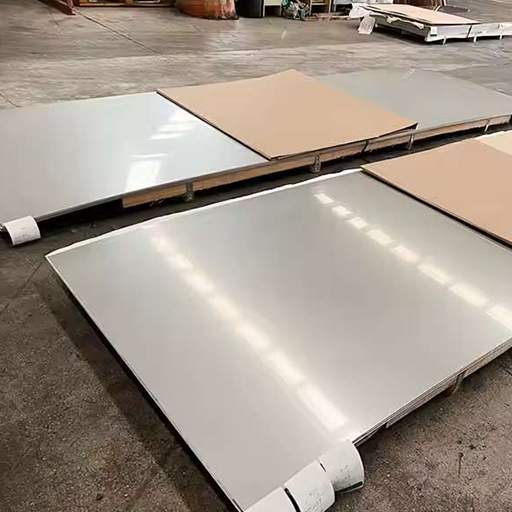

Hastelloy C276 Plates & Sheets
Hastelloy C276 (UNS N10276, Werkstoff Nr. 2.4819) is the most widely used grade. Its high molybdenum and tungsten content provides excellent resistance to oxidising and reducing media, wet chlorine, and hypochlorite environments. As a leading Hastelloy C276 sheets and plates supplier, we maintain ready stock in a wide range of thicknesses and widths.

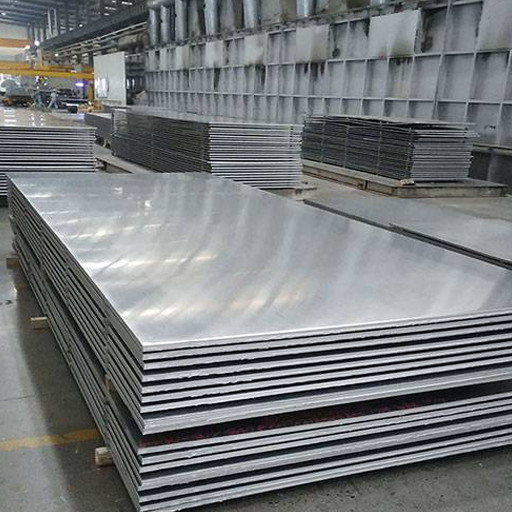

Hastelloy C22 Plates & Sheets
Hastelloy C22 (UNS N06022, Werkstoff Nr. 2.4602) offers superior resistance to oxidising acids like nitric and chromic acid, making it ideal for mixed acid environments. Our Hastelloy C22 sheets and plates are widely used in flue-gas desulphurisation and pharmaceutical synthesis equipment.
Hastelloy B2 Plates & Sheets
Hastelloy B2 (UNS N10665, Werkstoff Nr. 2.4617) is unmatched in resisting hydrochloric acid at all concentrations and temperatures. We supply B2 plates and sheets meeting ASTM B333 / ASME SB333. Complement your order with Hastelloy B2 round bars for complete fabrication packages.
Technical data
Hastelloy Plates & Sheets Specification
| Parameter | Details |
|---|---|
| Standards | ASTM B575, B333, B435 / ASME SB575, SB333, SB435 |
| Width | 1000 mm / 1219 mm / 1250 mm / 1500 mm / 2000 mm |
| Length | 2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm |
| Sheet thickness | 0.1 mm to 6 mm |
| Plate thickness | 6 mm to 100 mm |
| Coil / strip thickness | 0.1 mm to 3 mm |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard |
| Finish | HR, CR, 2B, 2D, BA, No.8 Mirror, SATIN, Plastic Coated |
| Form | Plates, Sheets, Coils, Foils, Strips, Blanks, Rings, Profiles, Perforated |
| Test certificates | EN 10204 Type 3.1 / 3.2, NABL Accredited Lab Reports |
Hastelloy Plates & Sheets Grade Equivalents
| Grade | UNS no. | Werkstoff Nr. | JIS | EN | AMS | Key standard |
|---|---|---|---|---|---|---|
| Hastelloy C276 | N10276 | 2.4819 | NW 0276 | NiMo16Cr15W | 5276 | ASTM B575 |
| Hastelloy C22 | N06022 | 2.4602 | NW 6022 | NiCr21Mo14W | 5409 | ASTM B575 |
| Hastelloy B2 | N10665 | 2.4617 | — | — | — | ASTM B333 |
| Hastelloy B3 | N10675 | 2.4600 | — | — | — | ASTM B333 |
| Hastelloy X | N06002 | 2.4665 | — | NiCr22Fe18Mo | 5536 | ASTM B435 |
Hastelloy C276 vs C22 vs B2 — Key Differences at a Glance
| Property | Hastelloy C276 | Hastelloy C22 | Hastelloy B2 |
|---|---|---|---|
| UNS no. | N10276 | N06022 | N10665 |
| Ni content | ~57% | ~56% | ~69% |
| Mo content | ~16% | ~13% | ~28% |
| Cr content | ~15.5% | ~22% | ~1% max |
| W content | ~3.7% | ~3% | — |
| Best resistance | Oxidising + reducing media | Oxidising acids, mixed acid | HCl at all concentrations |
| Max service temp. | ~1038 °C | ~1038 °C | ~538 °C |
| Key standard | ASTM B575 | ASTM B575 | ASTM B333 |
| Typical use | FGD, chemical reactors | Pharma, mixed acid | Hydrochloric acid plants |
| Werkstoff Nr. | 2.4819 | 2.4602 | 2.4617 |
| Supplier page | C276 Plates | C22 Plates | C276 Round Bars |
Certifications & Standards: Standards We Supply Against
| Standard body | Specification | Applies to |
|---|---|---|
| ASTM | B575 | Hastelloy C276, C22 sheet & plate |
| ASTM | B333 | Hastelloy B2, B3 sheet & plate |
| ASTM | B435 | Hastelloy X sheet & plate |
| ASME | SB575 | Pressure vessel / boiler applications |
| ASME | SB333 | Pressure vessel applications |
| ASME | SB435 | Pressure vessel applications |
| AMS | 5276 | Hastelloy C276 aerospace |
| AMS | 5536 | Hastelloy X aerospace |
| DIN / EN | 2.4819, 2.4602, 2.4617, 2.4665 | European equivalent grades |
| ISO | 9001:2015 | Quality management system |
Types / Forms Available
Plates
- Hastelloy C276 / C22 / B2 Hot Rolled Plates
- Hastelloy C276 / C22 Cold Rolled Plates
- Hastelloy Chequered Plates
- Hastelloy C276 Clad Plates
- Hastelloy Perforated Plates
- Hastelloy Shim Plates
Sheets
- Hastelloy C276 / C22 / B2 / B3 / X Sheets
- Cold Rolled (CR) & Hot Rolled (HR) Sheets
- 2B, 2D, BA, Mirror (No.8), Satin Finish Sheets
Coils, Strips & Foils
- Hastelloy Alloy Coils
- Hastelloy Slitting Coils
- Hastelloy Strips & Foils
Specialty Shapes (Cut-to-Size)
- Hastelloy Rings (Flange Blanks) & Circles
- Hastelloy Profiles & Flat Bars
- Custom Cut Pieces — plasma, water-jet, or shear cut
For related Hastelloy products, explore our Hastelloy C276 pipe fittings, Hastelloy C276 tube fittings, and Hastelloy C276 round bars.
Where Hastelloy Plates, Sheets & Coils Are Used
- Chemical Processing Industry Hastelloy C276 and C22 plates are the material of choice for reactors, columns, heat exchangers, and storage vessels handling corrosive chemicals, mixed acids, and chlorinated compounds. Their dual resistance to oxidising and reducing media makes them irreplaceable in complex chemical environments.
- Oil & Gas / Petrochemical Downhole equipment, wellheads, pressure vessels, and offshore platform components exposed to sour gas (H₂S) and high-chloride brines rely on Hastelloy’s SCC resistance. Pair these plates with our Hastelloy C276 pipes and tubes and Hastelloy C276 socket weld fittings for complete piping systems.
- Pharmaceutical & Biotechnology Fermentation vessels, crystallisers, and solvent-recovery columns use Hastelloy C22 sheets for their resistance to both oxidising sterilisation agents and process acids — critical in FDA-regulated environments.
- Flue-Gas Desulphurisation (FGD) Power plants worldwide use Hastelloy C276 and C22 plates to line scrubber towers and ducting where sulphur dioxide and chlorine compounds create a highly corrosive environment at elevated temperatures.
- Pollution Control & Waste Treatment Incineration equipment, acid gas scrubbers, and effluent treatment reactors benefit from Hastelloy’s combination of corrosion resistance and high-temperature strength.
- Aerospace & Defence Hastelloy X plates and sheets (AMS 5536) are used in jet engine components, afterburners, and combustion chambers, where oxidation resistance at extreme temperatures is critical.
- Pulp & Paper / Sugar & Distilleries Digesters, bleaching equipment, and evaporators depend on Hastelloy plates to handle sulphite and chlorine bleaching liquors that rapidly attack lesser alloys.
- Shipbuilding & Marine Marine heat exchangers, seawater handling systems, and desalination plant components use Hastelloy for exceptional seawater corrosion resistance and longevity.
How We Source and Qualify Every Hastelloy Plate & Sheet
At Aashish Metals, quality is not a checkbox — it is embedded in every step of our supply chain. All Hastelloy plates, sheets, and coils we supply originate from approved mills that conform to national and international manufacturing standards.
Incoming Inspection Every consignment undergoes incoming material inspection, including heat number verification, chemical composition check, and mechanical properties review against the manufacturer’s Mill Test Certificate (MTC).
Third-Party Testing Available We facilitate third-party inspection by agencies such as Bureau Veritas, SGS, Lloyd’s Register, and TÜV. Tests include:
- Chemical composition analysis (Optical Emission Spectrometry / XRF)
- Tensile and yield strength testing
- Hardness testing (Brinell, Vickers, Rockwell)
- Intergranular corrosion test (ASTM A262 Practice E)
- Ultrasonic testing (UT) for plates
- Dye penetrant testing (DPT)
Value-Added Processing
- Precision plasma and water-jet cutting
- Forming / rolling / bending to custom profiles
- Drilling, machining, and surface finishing
- Custom blanking, ring rolling, and circle cutting
Combine your plate order with complementary products: Hastelloy C22 pipe fittings, Hastelloy C22 fasteners, Hastelloy C22 round bars, and Hastelloy C22 manifold valves for a complete single-source supply solution.
FAQ’s About Hastelloy Plates & Sheets Supplier
C276 (UNS N10276) has higher molybdenum (~16%) and tungsten (~3.7%) content, giving it superior resistance to reducing environments such as hydrochloric acid. Hastelloy C22 (UNS N06022) has more chromium (~22%), making it better in oxidising acids like nitric and chromic acid and in mixed-acid environments. For most general chemical processing, C276 is preferred; C22 is chosen when oxidising conditions dominate.
Hastelloy C276 sheets and plates are covered under ASTM B575 / ASME SB575. Hastelloy B2/B3 plates fall under ASTM B333 / ASME SB333, and Hastelloy X plates under ASTM B435 / ASME SB435.
Aashish Metals supplies Hastelloy C276 plates from 0.1 mm (foil/strip) up to 100 mm thick. Standard sheets run from 0.1 mm to 6 mm, and plates from 6 mm to 100 mm.
Yes. We supply Hastelloy C276 clad plates (C276-clad carbon or stainless steel) for cost-sensitive applications where full Hastelloy construction is not required but corrosion protection is critical.
Absolutely. Hastelloy X sheets to AMS 5536 are available in both hot-rolled and cold-rolled conditions, primarily for aerospace combustion components and high-temperature structural applications.
We supply Hastelloy sheets in hot-rolled (HR), cold-rolled (CR), 2B, 2D, bright annealed (BA), No. 4, No. 8 mirror polish, and satin finishes, as well as plastic-coated finish on request.
Get a Fast Quote for Hastelloy Plates, Sheets & Coils
Ready to source premium Hastelloy material for your next project? Aashish Metals offers competitive pricing, verified stock, and expert technical support — all backed by certified documentation and decades of industry experience.
