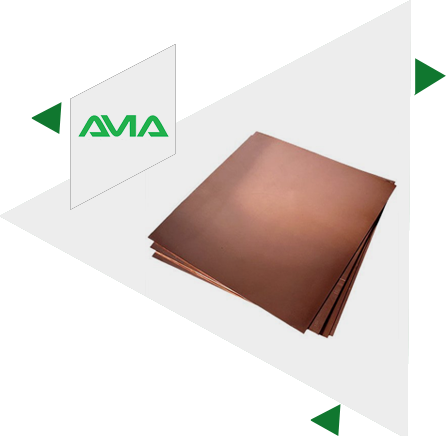

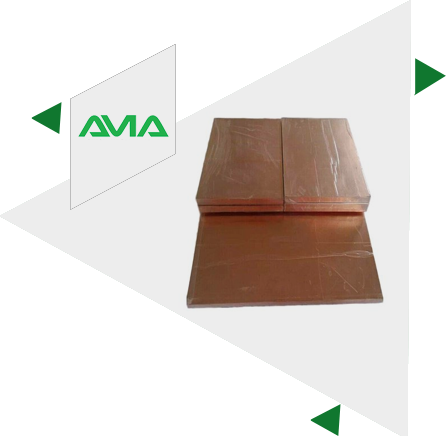

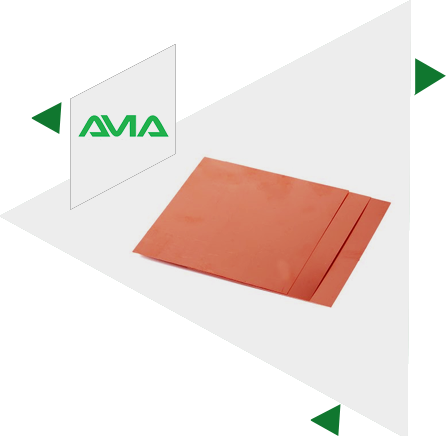

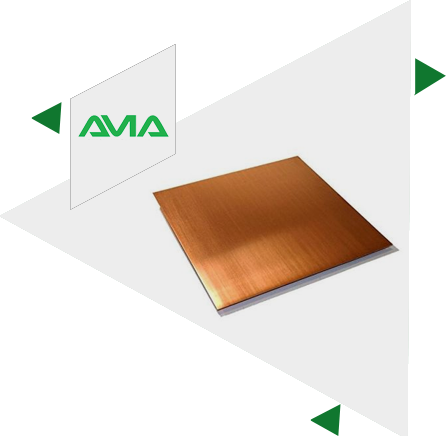

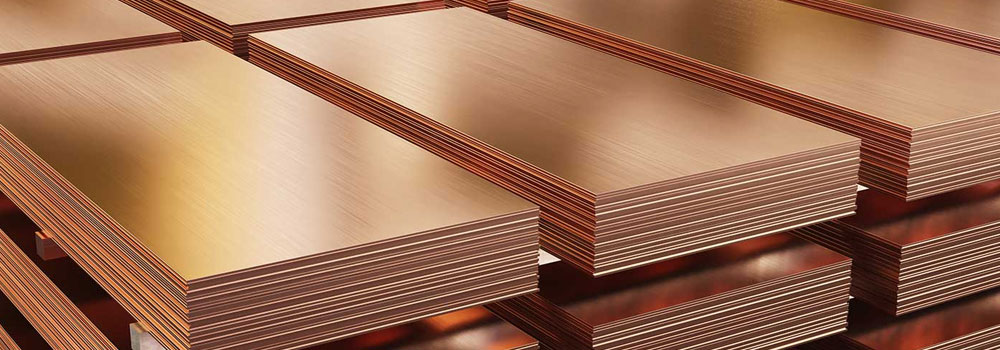

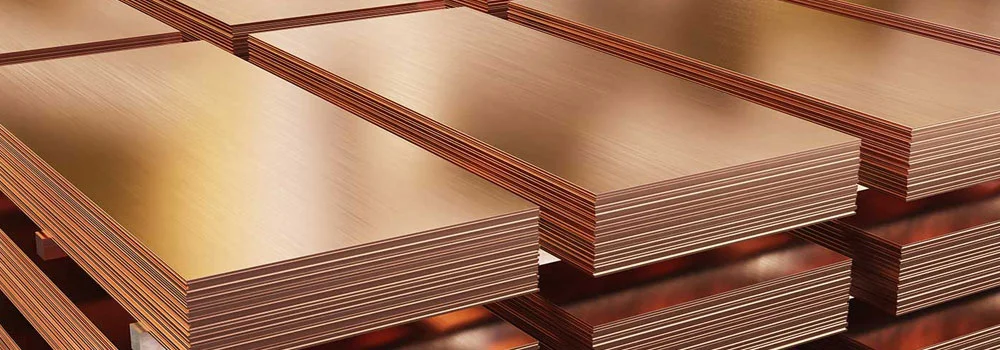

Beryllium Copper UNS C17200 Plate
Beryllium Copper Plate Manufacturer, Supplier & Exporter in India
Aashish Metals is a reputable manufacturer, supplier and exporter of beryllium copper plate that is of premium quality in India. Being among the trusted beryllium copper C17200 suppliers, we provide high-performance C17200 beryllium copper plates that have high strengths, good conductivities, and durability of service.
Our UNS C17200 plates are part of our extensive range of Beryllium Copper Products and are widely used in applications demanding exceptional mechanical and electrical performance. C17200 copper is known to be one of the strongest copper alloys that beats most of the commercial copper-based materials.
C17200 beryllium copper sheet and sheet are age-hardenable, which means that the alloy attains very high levels of mechanical properties when subjected to a controlled heat treatment. These c17200 beryllium copper properties, including high fatigue resistance, wear resistance, and thermal conductivity which are ideal in aerospace, oil and gas, tooling and precision engineering industries.
Our range of beryllium copper plates C17200/ C17300 is manufactured with superior technology and high grade raw materials so that the structure of each plate is uniform, structural integrity is high as well as their machinability is good in all the thicknesses and sizes.
- BERYLLIUM COPPER C17200 PLATE EQUIVALENT GRADES
- C17200 BERYLLIUM COPPER PLATE SPECIFICATION
- CDA 172 BERYLLIUM COPPER ALLOY PLATE CHEMICAL COMPOSITION
- BERYLLIUM COPPER C17200 PLATE PHYSICAL & MECHANICAL PROPERTIES
- INDUSTRIAL APPLICATIONS OF BERYLLIUM COPPER PLATE
- OTHER TYPES OF BERYLLIUM COPPER PRODUCTS
BERYLLIUM COPPER C17200 PLATE EQUIVALENT GRADES
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Beryllium Copper | 2.1247 | C17200 |
C17200 BERYLLIUM COPPER PLATE SPECIFICATION
| Property | Specification |
|---|---|
| Standard | ASTM B194, B534, B768 / ASME SB194, SB534, SB768 |
| Dimensions | ASTM, ASME and API |
| Thickness | 0.2 mm ~ 300 mm |
| Size | 15NB to 150NB |
CDA 172 BERYLLIUM COPPER ALLOY PLATE CHEMICAL COMPOSITION
The following beryllium copper C17200 data sheet outlines the precise chemical composition of C17200 copper, ensuring consistent metallurgical performance.
| Element | Cu | Ni + Co | Ni + Co + Fe | Be | Al | Si |
|---|---|---|---|---|---|---|
| Value | Remainder | 0.20 min | 0.6 max | 1.80 – 2.00 | 0.20 max | 0.20 max |
BERYLLIUM COPPER C17200 PLATE PHYSICAL & MECHANICAL PROPERTIES
These c17200 beryllium copper properties highlight why UNS C17200 is preferred for high-stress and high-conductivity applications.
| Property | Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
|---|---|---|---|---|---|
| Value | 8.25 g/cm³ | 982 °C (1800 °F) | 165 ksi, 1138 MPa | 140 ksi, 965 MPa | 3 % |
Industrial Applications of Beryllium Copper Plate
Beryllium copper plates from Aashish Metals are trusted by industries worldwide for their exceptional performance and reliability.
- Aerospace & Defense
- Electrical & Electronics
- Oil & Gas / Hazardous Environments
- Tooling & Molding
- Automotive
- Telecommunications
- Marine
OTHER TYPES OF BERYLLIUM COPPER PRODUCTS
Beryllium Copper Wire and Coil
Frequently Asked Questions
Beryllium also provides Copper with the capability of steel and the conductivity of a Copper Alloy. Due to the great fatigue strength, beryllium copper finds application in springs, pressure responsive diaphragms, flexible bellows, connectors, contacts and relays, all of which are under cyclic loading.
Beryllium copper is stronger than steel and the strength is reaching 1,400 MPa (200,000 psi) in addition to its high thermal conductivity of 62 Btu / ft-deg. F-H.
The highest strength and hardness are attained by subjecting it to low temperature heat treatment (600 degrees, 2-3 hours). C17200 commonly referred to as Alloy 25, is found in rod, bar, tube and strip. The table is found here: Mechanical Properties of C172 (at room temperature, 68 F (20 C).
The price of Beryllium Copper plates varies based on grade, thickness, size, quantity, and market conditions. For accurate and updated pricing, customers are encouraged to request a customized quotation from Aashish Metal and Alloys.
