Monel Tube Fittings Supplier in India — Monel 400 & K500
Home > Materials > Monel Products > Monel Tube Fittings
Aashish Metals is a trusted supplier and stockist of Monel tube fittings in India, offering a comprehensive range of Monel 400 and Monel K500 compression, ferrule, and double-ferrule instrumentation fittings from our Mumbai facility. Monel is a nickel-copper alloy renowned for its exceptional resistance to corrosion by seawater, hydrofluoric acid, sulphuric acid, and alkaline solutions, combined with impressive mechanical strength and low magnetic permeability making Monel tube fittings the first-choice material wherever stainless steel fittings are inadequate in marine, chemical, and oil & gas environments. Our Monel tube fittings conform to ASTM B564 / ASME SB564 and ASTM B366 / ASME SB366, and are available from 1/16″ to 2″ OD (2 mm to 50 mm OD) in straight, elbow, tee, cross, bulkhead, and closure configurations. Dimensionally equivalent to Parker, Swagelok, Hoke, and DK-Lok designs, our fittings integrate directly into existing instrument loop installations. Our Monel 400 tube fittings are ex-stock for fast delivery.
What Are Monel Tube Fittings?
Monel tube fittings are precision-machined nickel-copper alloy components for small-bore instrumentation and process tubing connections. They provide leak-tight, gas-tight seals in easy-to-install, disassemble, and reassemble form using double-ferrule compression technology — delivering robust tube grip with patented sealing that resists vibration fatigue, high pressures, and extreme temperatures from −150 °C to +400 °C.
Monel Tube Fittings Grades
Monel 400 Tube Fittings
Monel 400 (UNS N04400 / Werkstoff Nr. 2.4360) is the standard grade — a nickel-copper alloy with approximately 65% Ni and 32% Cu — offering outstanding resistance to seawater corrosion, hydrofluoric acid, sulphuric acid (at moderate concentrations), and alkaline solutions. Our Monel 400 tube fittings are the most widely stocked form, available in all standard compression fitting configurations. ASME SB564/564M and ASTM B564/564M certified.
Monel K500 Tube Fittings
Monel K500 (UNS N05500 / Werkstoff Nr. 2.4375) is a precipitation-hardenable version of Monel 400, adding aluminium and titanium to achieve approximately three times the yield strength of the annealed alloy while retaining the same corrosion resistance. It is specified where higher strength is needed — subsea valve stems, pump shafts, and instrumentation connections in high-pressure sour gas service.
For complementary Monel products, explore our Monel 400 pipe fittings, Monel 400 round bars, Monel 400 sheets and plates, Monel K500 round bar, and our full Monel products range.
Technical data
Monel Tube Fittings Specification
| Parameter | Details |
|---|---|
| Material standard | ASTM B564 / ASME SB564 (Monel 400, K500) |
| Additional standard | ASTM B366 / ASME SB366 |
| Thread standard | ASTM B16, ASTM B453 |
| PTFE standards | ASTM D1710, ASTM D3294 |
| Size (OD — inch) | 1/16" to 2" OD |
| Size (OD — metric) | 2 mm to 50 mm OD |
| Standard range (seamless) | 1/4" to 2" / 6 mm to 38 mm |
| Welded adapters | 24" to 96" or Custom |
| Threads | NPT, BSP, BSPT, BSPP, UNF, ISO, SAE, AN |
| Pressure rating (standard) | 3,000 to 10,000 Psi (seamless) |
| Pressure rating (two-ferrule) | Up to 11,000 Psi (760 bar) |
| Pressure rating (medium-gaugeable) | Up to 20,000 Psig (1,378 bar) |
| Pressure rating (high-pressure) | Up to 60,000 Psig (4,134 bar) |
| Application temperature | 150 °C to +400 °C |
| End connections | Tube-to-Tube, Tube-to-Male Thread, Tube-to-Female Thread, Butt Weld, Socket Weld, JIC 37°, 24° Cone, Swivel End, Adjustable Standpipe |
| Body type | Forged, Bar Stock |
| Surface finish | Export Bright Finish, Short Blasted Finish, Electroplated Finish |
| Ends | Welding, Threaded, JIC |
| Grades | Monel 400 (N04400 / 2.4360), Monel K500 (N05500 / 2.4375) |
| Test certificates | EN 10204 Type 3.1 / 3.2, PMI, Third-Party Inspection |
Monel 400 Tube Fittings Dimension Table (NPT / BSP Thread)
| OD (fraction inch) | OD actual (inches) | Thread designation — nominal size (inches) | NPT (threads/inch) | BSP (threads/inch) |
|---|---|---|---|---|
| 5/16 | 0.3125 | 1/16 | 27 | 28 |
| 13/32 | 0.405 | 1/8 | 27 | 28 |
| 35/64 | 0.540 | 1/4 | 18 | 19 |
| 43/64 | 0.675 | 3/8 | 18 | 19 |
| 27/32 | 0.840 | 1/2 | 14 | 14 |
| 1-3/64 | 1.050 | 3/4 | 14 | 14 |
| 1-5/16 | 1.315 | 1 | 11-1/2 | 11 |
| 1-21/32 | 1.660 | 1-1/4 | 11-1/2 | 11 |
| 1-29/32 | 1.900 | 1-1/2 | 11-1/2 | 11 |
| 2-3/8 | 2.375 | 2 | 8 | 11 |
| 2-7/8 | 2.875 | 2-1/2 | 8 | 11 |
| 3-1/2 | 3.5 | 3 | 8 | 11 |
| 4 | 4.0 | 3-1/2 | 8 | 11 |
| 4-1/2 | 4.5 | 4 | 8 | 11 |
| 5-5/8 | 5.563 | 5 | 8 | 11 |
| 6-5/8 | 6.625 | 6 | 8 | 11 |
ASTM B564 UNS N04400 Ferrule Tube Fittings Pressure Ratings
NPT/ISO rating as per ASME B31.3 — ambient temperature process piping.
| NPT/ISO pipe size (in) | Male psig (bar) | Female psig (bar) |
|---|---|---|
| 1/16 | 9,900 (682) | 6,000 (413) |
| 1/8 | 9,000 (620) | 5,800 (399) |
| 1/4 | 7,200 (496) | 5,900 (406) |
| 3/8 | 7,000 (482) | 4,700 (323) |
| 1/2 | 6,900 (475) | 4,400 (303) |
| 3/4 | 6,500 (447) | 4,100 (282) |
| 1 | 4,700 (323) | 3,900 (268) |
| 1-1/4 | 5,400 (372) | 4,500 (310) |
| 1-1/2 | 4,100 (310) | 4,100 (282) |
| 2 | 3,500 (241) | 3,500 (241) |
Equivalent Grades — Monel 400 & K500
| Standard | UNS | Werkstoff Nr. | AFNOR | JIS | BS | GOST | EN |
|---|---|---|---|---|---|---|---|
| Monel 400 | N04400 | 2.4360 | NU-30M | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NiCu30Fe |
| Monel K500 | N05500 | 2.4375 | — | — | — | — | — |
Chemical Composition of Nickel Alloy 400 & K500 Tube Fittings
| Grade | Ni% | Cu% | Fe% | Mn% | C% | Si% | S% | Al% | Ti% |
|---|---|---|---|---|---|---|---|---|---|
| Monel 400 | 63.0 min | 28.0–34.00 | 2.5 max | 2.0 max | 30 max | — | — | — | — |
| Monel K500 | 64.0 | 30.0 | 1.0 | 0.8 max | 0.13 | — | — | 2.30–3.15 | 0.6 |
Monel 400 Compression Elbow Mechanical Properties
| Property | Metric | Imperial |
|---|---|---|
| Tensile strength (annealed) | 517–620 MPa | 75–90 Ksi |
| Yield strength | 172–345 MPa | 25–50 Ksi |
| Modulus of elasticity | 179 GPa | 26,000 Ksi |
| Poisson's ratio | 0.32 | 0.32 |
Manufacturing, Standards & Certifications: Standards We Supply Against
| Standard body | Specification | Application |
|---|---|---|
| ASTM | B564 | Nickel alloy forgings (Monel 400, K500) |
| ASME | SB564 | Pressure vessel forgings |
| ASTM | B366 | Nickel alloy pipe fittings |
| ASME | SB366 | Pressure vessel pipe fittings |
| ASTM | B16 | Pipe flanges and fittings |
| ASTM | B453 | Fitting reference standard |
| ASTM | D1710, D3294 | PTFE standards (for PTFE-sealed variants) |
| ISO | 9001:2015 | Quality management system |
| NACE | MR0175 / ISO 15156 | Sour gas / H₂S service (on request) |
Test Certificates Available
- EN 10204 Type 3.1 (standard with every order)
- EN 10204 Type 3.2 (third-party witnessed — on request)
- PMI (Positive Material Identification) Report
- Third-Party Inspection (Bureau Veritas, SGS, Lloyd's, TÜV)
- Country of Origin Certificate, NABL Accredited Lab Report
Packing: Carton (21×16×14 cm / 31×21×16 cm / 36×45×50 cm) and wooden box (38×27×17 cm); typically 3 pieces/opp, 10–20 pcs/carton.
Monel Tube Fittings Types

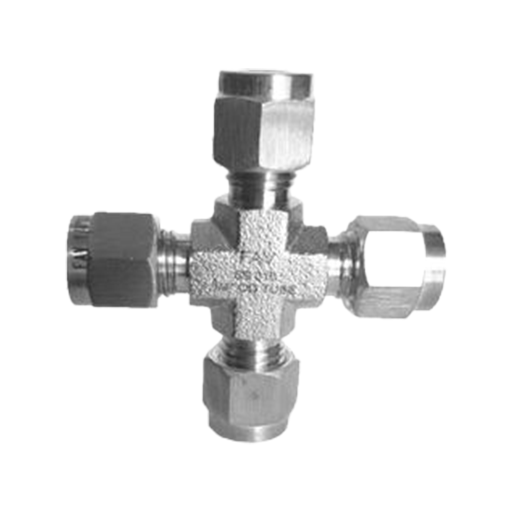

Monal Cross Union

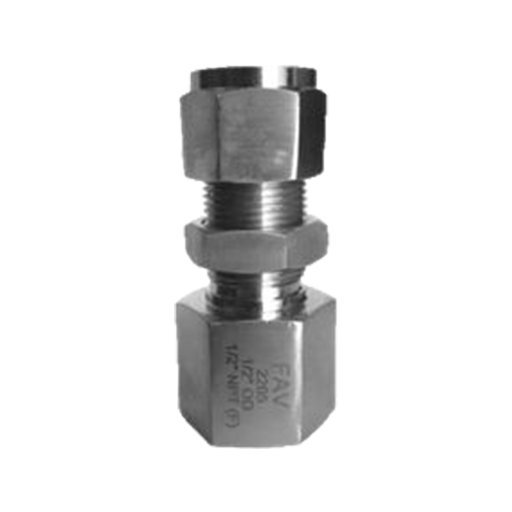

Monal Female Bulkhead Connector

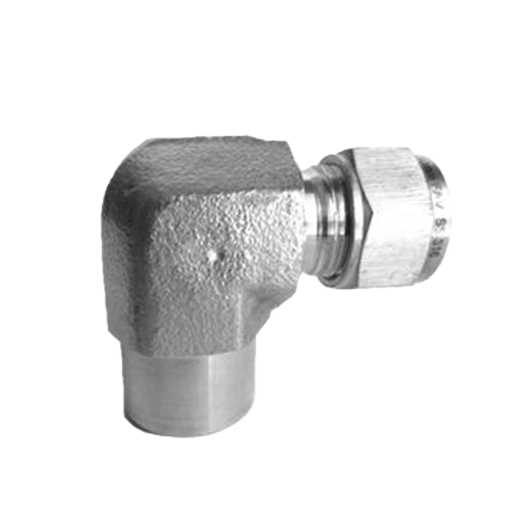

Monal Female Elbow

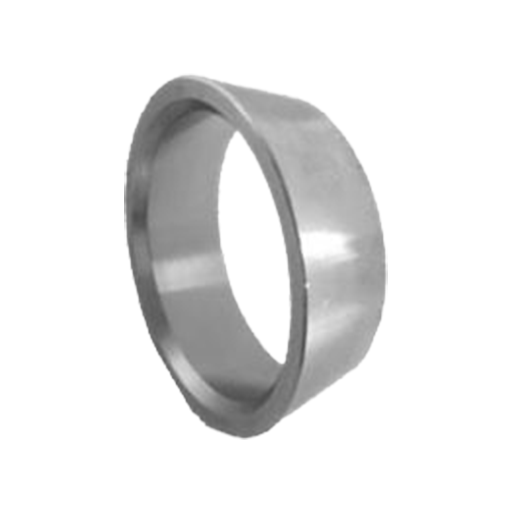

Monal Front Ferrule
Monal Cross Union

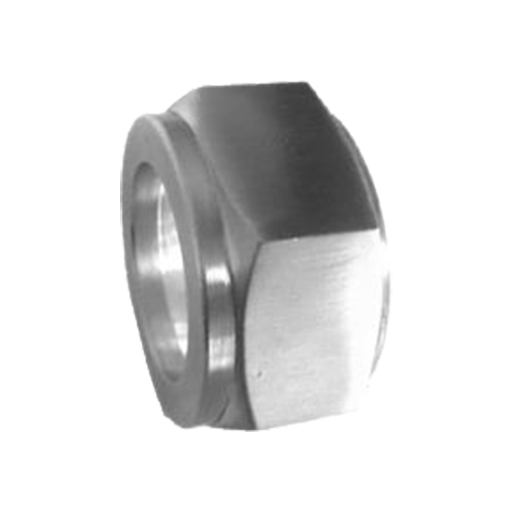

Monal Nut

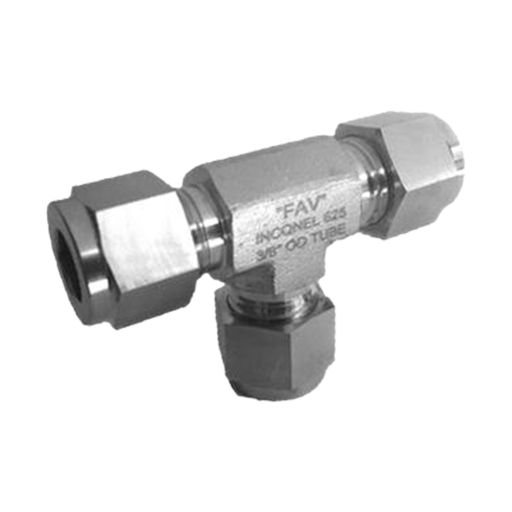

Monal Union Tee

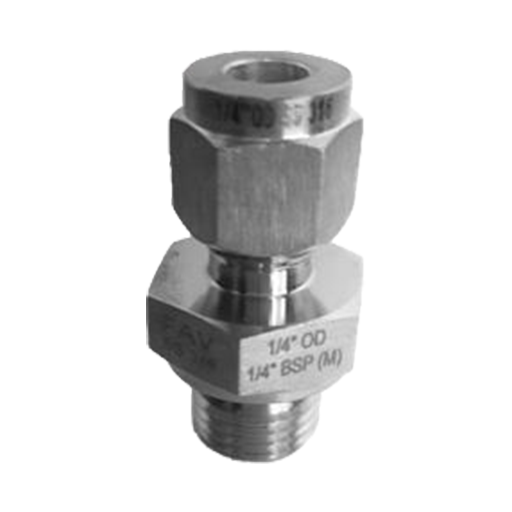

Monel BSP Male Connector

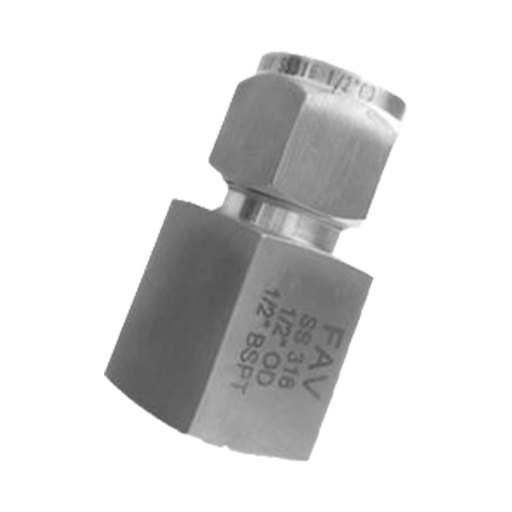

Monel Female Connector

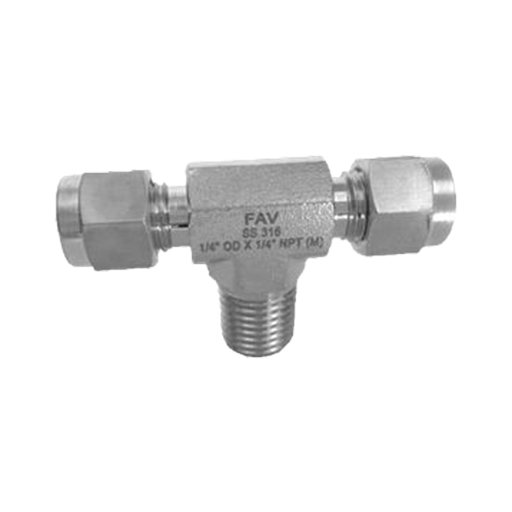

Monel Male Branch Tee

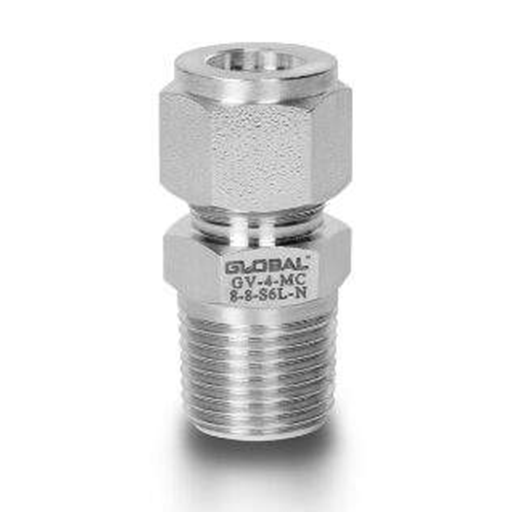

Monel Male Connector

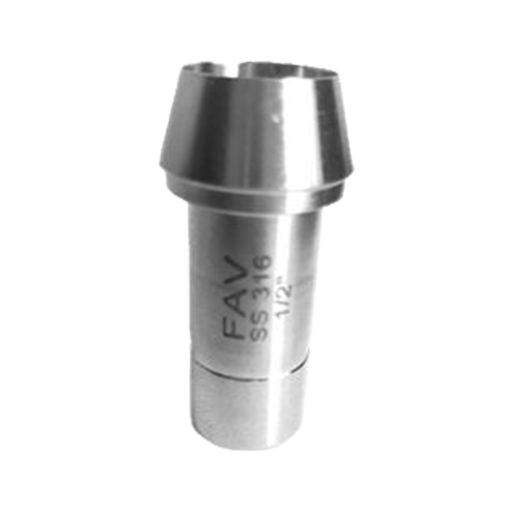

Monel Port Connector

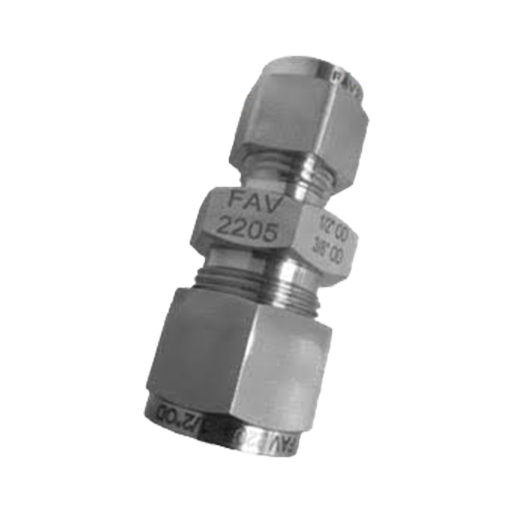

Monel Union Connector

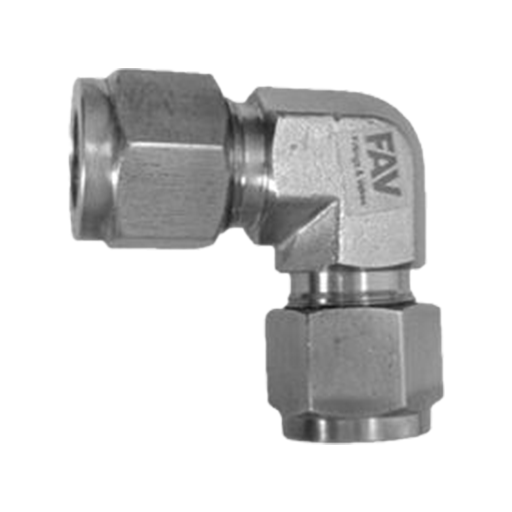

Monel Union Elbow

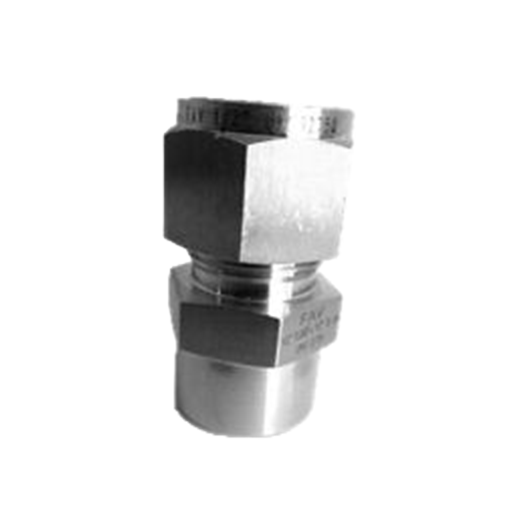

Monel Weld Connector
Monel Port Connector
Monel Tube Fittings Applications
Monel tube fittings are used in oil & gas instrumentation, gas processing, chemical and petrochemical plants, marine piping, pharmaceutical processing, power generation, textile machinery, pulp & paper mills, synthetic fibre manufacturing, heat exchangers, dairy and food processing, water treatment, and automotive test systems. They are also specified for chromatography and column-end connections in analytical laboratories where acid resistance is required. For needle valves and manifolds in the same alloy, see our Monel 400 needle valves and Monel 400 manifold valves.
FAQs - Monel Tube Fittings
Monel tube fittings are used for small-bore instrumentation and process tubing connections in corrosive environments — particularly marine seawater service, hydrofluoric acid handling, sulphuric acid plants, oil & gas production, chemical processing, power generation, and pharmaceutical instrumentation where stainless steel is not adequate.
Monel 400 tube fittings conform to ASTM B564 / ASME SB564 for the forged bodies, and ASTM B366 / ASME SB366 for fittings generally. Thread standards follow ASTM B16. Dimensionally, they are interchangeable with Parker, Swagelok, Hoke, and DK-Lok tube fitting systems.
Aashish Metals stocks Monel 400 tube fittings from 1/16″ to 2″ OD (2 mm to 50 mm OD). Standard instrumentation sizes run 1/4″ to 1-1/2″ (6 mm to 38 mm OD). Seamless compression fittings cover 1/4″ to 2″; welded compression adapters can be custom-made up to 96″.
Monel 400 (N04400) is the standard grade — excellent corrosion resistance with good mechanical strength in annealed condition. Monel K500 (N05500) is precipitation-hardenable, delivering approximately three times the yield strength of Monel 400 while retaining the same corrosion resistance — specified for high-pressure and sour gas service where greater strength is required.
Male connectors achieve up to 9,900 Psi (682 bar) for 1/16″ size, decreasing with size. Female connectors range from 3,500 to 6,000 Psi depending on size. Two-ferrule fittings achieve up to 11,000 Psi (760 bar); high-pressure versions can reach 60,000 Psi (4,134 bar).
Yes. Monel 400 tube fittings from Aashish Metals are dimensionally equivalent to Parker, Swagelok, Hoke, and DK-Lok designs in the same tube OD size — they can be used interchangeably in the same instrument loop without adapters.
Absolutely. Monel 400 is one of the most seawater-resistant alloys available — it resists pitting, crevice corrosion, and biofouling in seawater, brine, and marine atmospheres. It is a standard choice for offshore platform instrumentation, desalination plant connections, and marine heat exchanger piping.
Get a Fast Quote for Monel Tube Fittings
Whether you need a handful of Monel 400 male connectors for an instrument loop upgrade or a full bill-of-materials for a new offshore skid, Aashish Metals has the ready stock, the certifications, and the technical knowledge to deliver at a competitive price.
